Create a custom Insight widget for a [!INCLUDEname-sos] dashboard

In this tutorial you learn how to locate the five slowest queries, into a database insight widget and add it to the database management dashboard.

In this tutorial, you learn how to:

[!div class="checklist"]

  • Locate the top five slowest queries
  • Visualize the query results as a chart
  • Create a dashboard insight widget from the chart
  • Add dashboard insight widgets to the database dashboard

Prerequisites

This tutorial requires the TutorialDB database. To create the TutorialDB database, complete one of the following quickstarts:

  • [Connect and query SQL Server using [!INCLUDEname-sos-short]](get-started-sql-server.md)
  • [Connect and query Azure SQL Database using [!INCLUDEname-sos-short]](get-started-sql-database.md)
  • [Connect and query SQL Data Warehouse using [!INCLUDEname-sos-short]](get-started-sql-dw.md)

Create a query to view the top five slowest queries

To identify query performance issues, lets create an insight widget that uses Query Store.

  1. Open the SERVERS sidebar (CTRL+G), expand Databases, right-click TutorialDB, and select New Query.

  2. Enable Query Store by running the following query:

     ALTER DATABASE TutorialDB SET QUERY_STORE=ON

  3. Return the five slowest queries by running the following script:

     WITH SlowestQry AS(
     SELECT TOP 5
         p.query_id,
         MAX(rs.max_duration ) max_duration
     FROM sys.query_store_plan AS p
     JOIN sys.query_store_runtime_stats AS rs
         ON p.plan_id = rs.plan_id
     WHERE rs.last_execution_time > DATEADD(week, -1, GETUTCDATE())
     GROUP BY p.query_id
     ORDER BY MAX(rs.max_duration ) DESC)
 SELECT
     p.query_id,  -- legend
     format(rs.last_execution_time,'yyyy-MM-dd hh:mm:ss') as [last_execution_time],   -- x axis
     rs.max_duration,  -- y axis
     p.plan_id
 FROM sys.query_store_plan AS p
     JOIN sys.query_store_runtime_stats AS rs
         ON p.plan_id = rs.plan_id
     JOIN SlowestQry tq
         ON tq.query_id = p.query_id
 WHERE rs.last_execution_time > DATEADD(week, -1, GETUTCDATE())
 order by format(rs.last_execution_time,'yyyy-MM-dd hh:mm:ss')

  4. After the results are returned, click View as Chart.

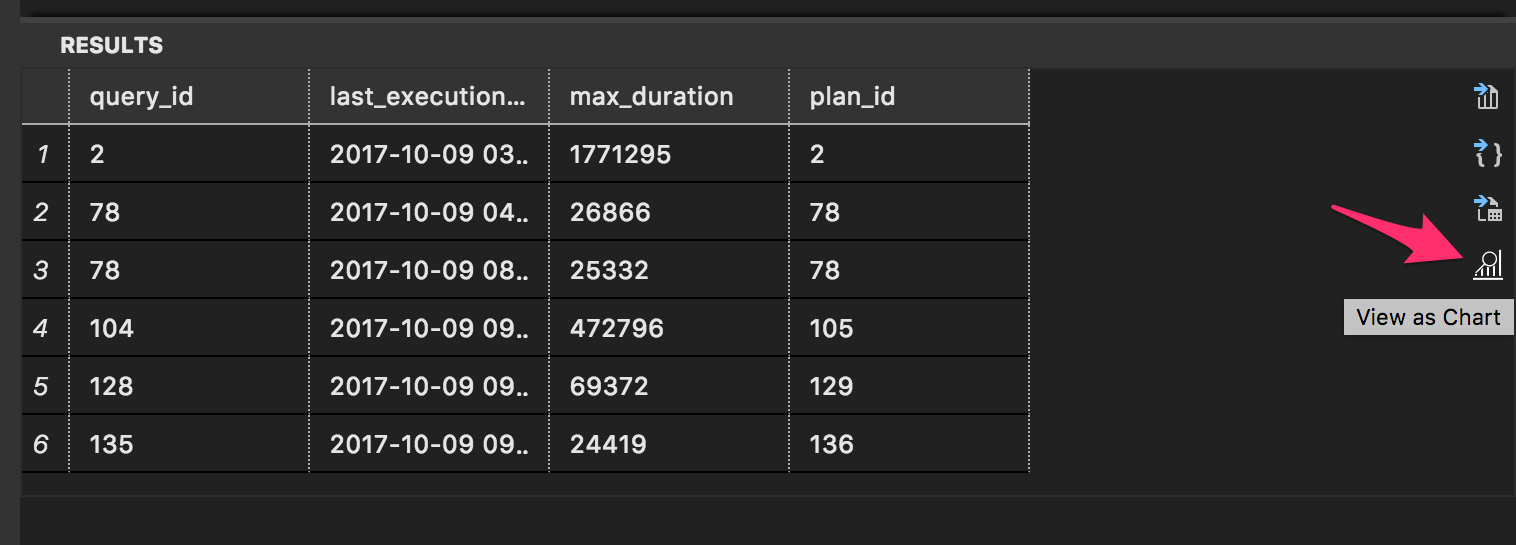

    view as chart

  5. For a better visualization of this data, change the chart type to timeSeries, and set Legend Position to top:

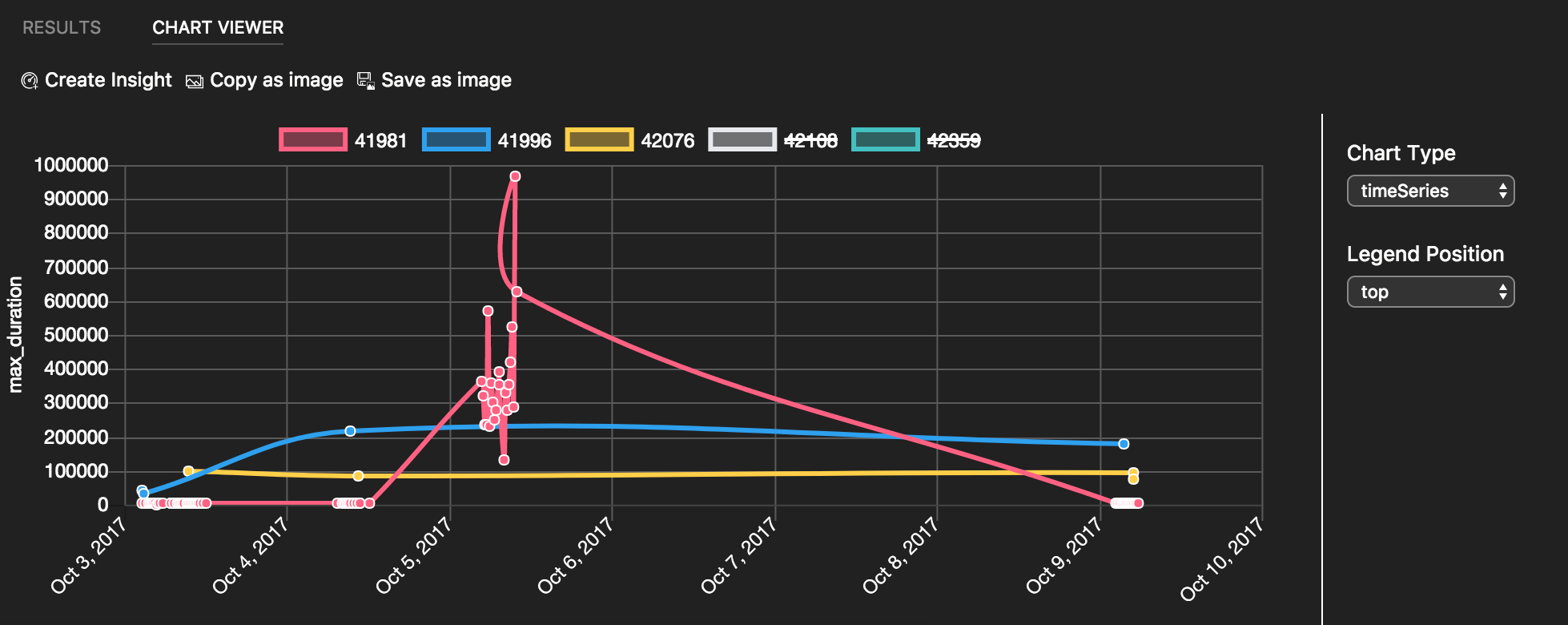

    query performance

  6. Save the script in the editor to a *.sql file. For this tutorial, save the script as qds_insight.sql

Create an insight widget based on the query results

Now lets turn the chart from the previous section into a dashboard insight widget.

  1. Click Create Insight on Chart Viewer. It opens an insight configuration as JSON:

     {
     "name": "My-Widget",
     "gridItemConfig": {
         "sizex": 2,
         "sizey": 1
     },
     "widget": {
         "insights-widget": {
             "type": {
                 "timeSeries": {
                     "dataDirection": "horizontal",
                     "dataType": "point",
                     "legendPosition": "top",
                     "labelFirstColumn": false,
                     "columnsAsLabels": false
                 }
             },
             "queryFile": "/Users/myusername/Projects/database_project/qds_insight.sql"
         }
     }
 }

  2. Copy the insight configuration (the JSON data).

  3. Open User Settings by pressing F1 and typing settings in the Command Palette.

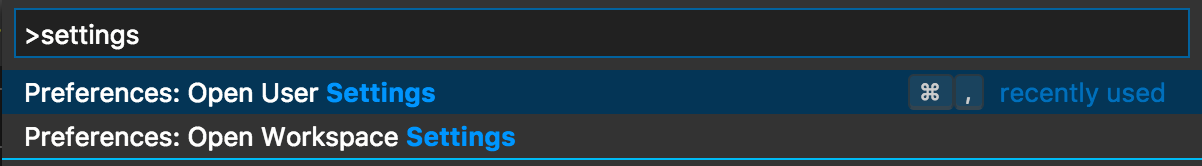

    settings

  4. Type dashboard in Search Settings.

  5. Locate dashboard.database.widgets, click Edit, then Copy to Settings.

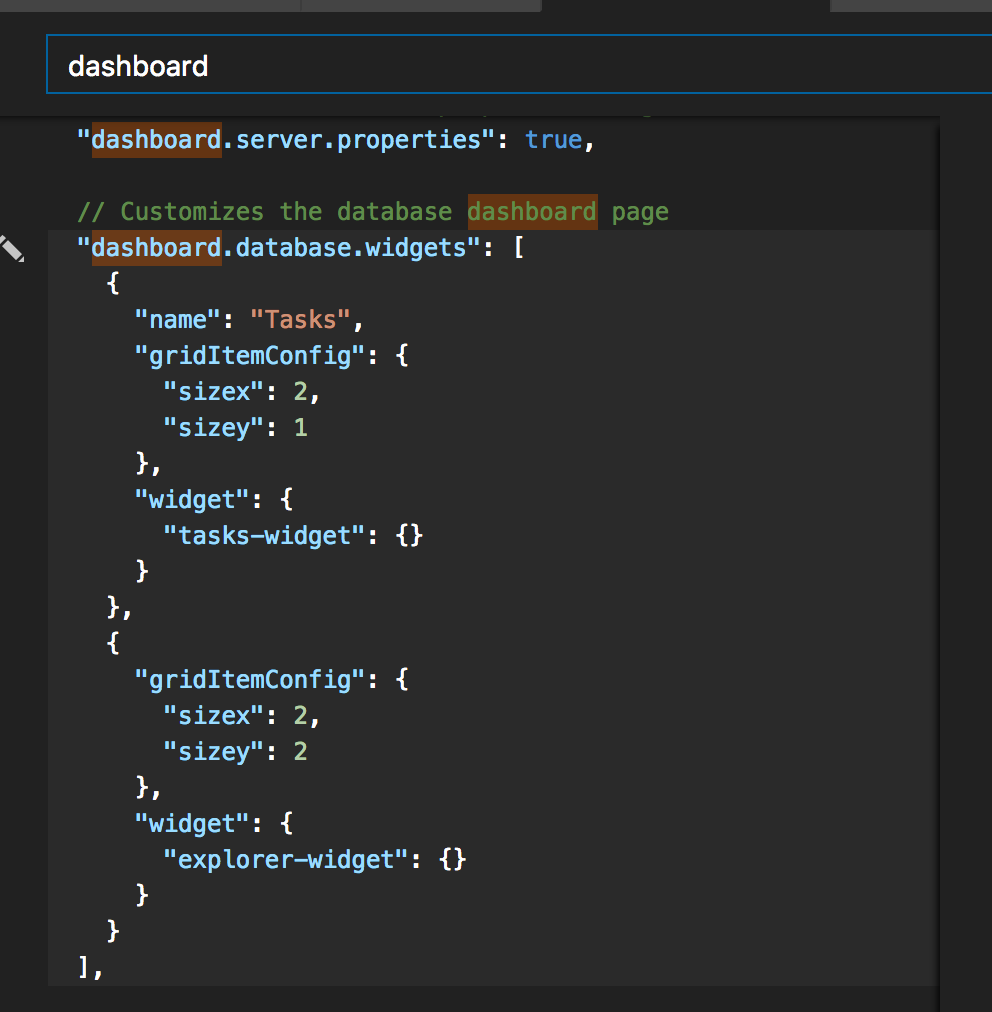

    dashboard settings

  6. Paste the insight configuration JSON that you copied previously into dashboard.database.widgets. Your settings should look similar to the following JSON block:

     "dashboard.database.widgets": [
     {
         "name": "My-Widget",
         "gridItemConfig": {
             "sizex": 2,
             "sizey": 1
         },
         "widget": {
             "insights-widget": {
                 "type": {
                     "timeSeries": {
                         "dataDirection": "horizontal",
                         "dataType": "point",
                         "legendPosition": "top",
                         "labelFirstColumn": false,
                         "columnsAsLabels": false
                     }
                 },
                 "queryFile": "/Users/myusername/Projects/database_project/qds_insight.sql"
             }
         }
     },
     {
         "name": "Tasks",
         "gridItemConfig": {
             "sizex": 2,
             "sizey": 1
         },
         "widget": {
             "tasks-widget": {}
         }
     },
     {
         "gridItemConfig": {
             "sizex": 2,
             "sizey": 2
         },
         "widget": {
             "explorer-widget": {}
         }
     }
 ]

  7. Save the User Settings file.

  8. To see the new insight widget, open the Database dashboard for TutorialDB (right-click TutorialDB in the SERVERS sidebar and select Manage).

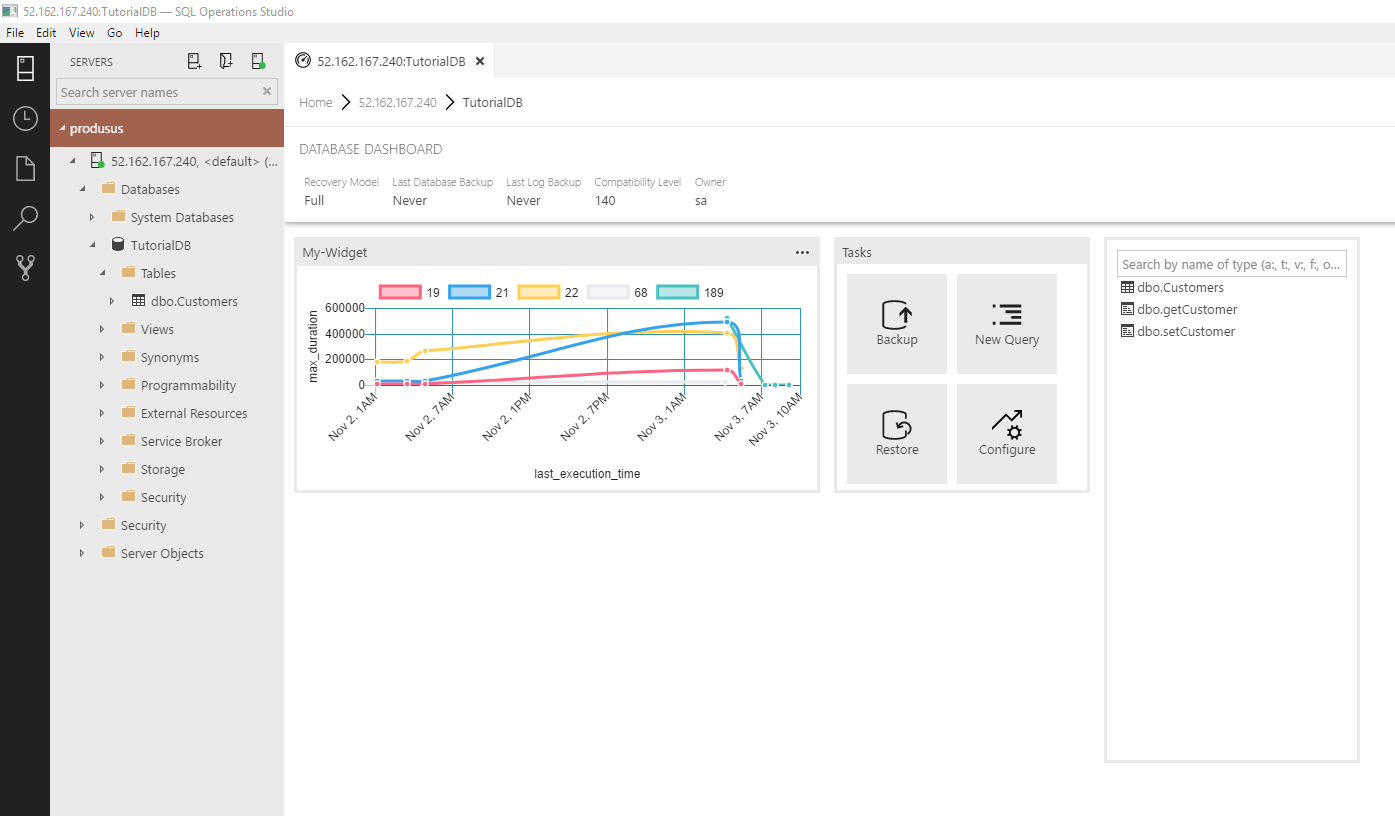

    qds insight

Next Steps

In this tutorial, you learned how to:

[!div class="checklist"]

  • Turn on Query Store
  • Locate the five slowest queries
  • Visualize query results as a chart
  • Create a dashboard insight widget from a query
  • Add dashboard insight widgets to the database dashboard

Next, learn how to use X, try this tutorial:

[!div class="nextstepaction"] What article is next in sequence
