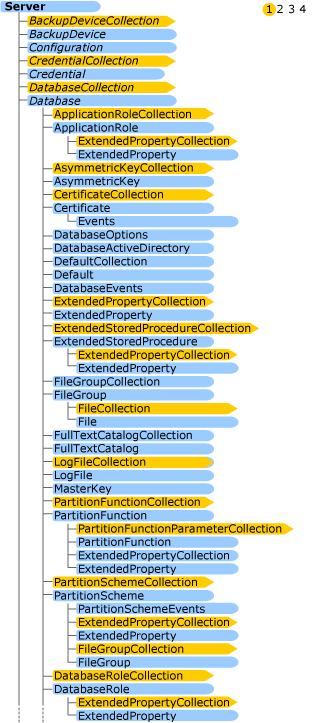

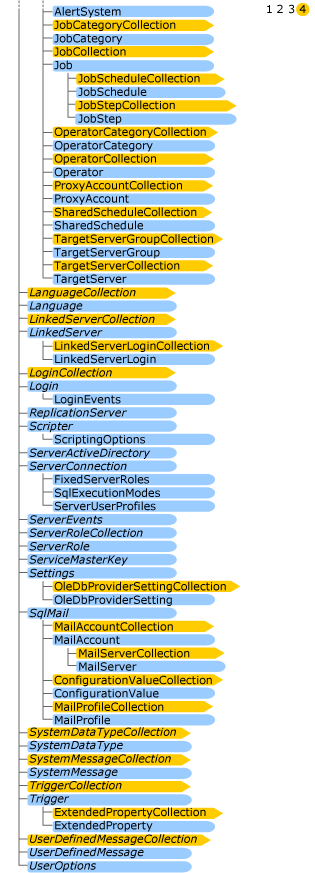

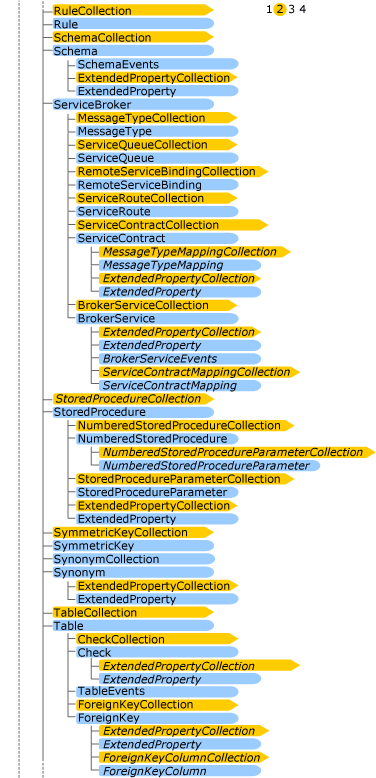

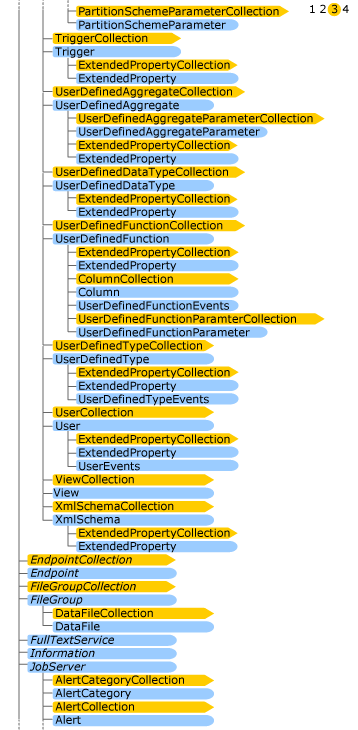

This diagram shows the SMO object hierarchy and the relationships between the object types. The xref:Microsoft.SqlServer.Management.Smo.Server object is the top level object.
