Permissions Hierarchy (Database Engine)

The [!INCLUDEssDE] manages a hierarchical collection of entities that can be secured with permissions. These entities are known as securables. The most prominent securables are servers and databases, but discrete permissions can be set at a much finer level. [!INCLUDEssNoVersion] regulates the actions of principals on securables by verifying that they have been granted appropriate permissions.

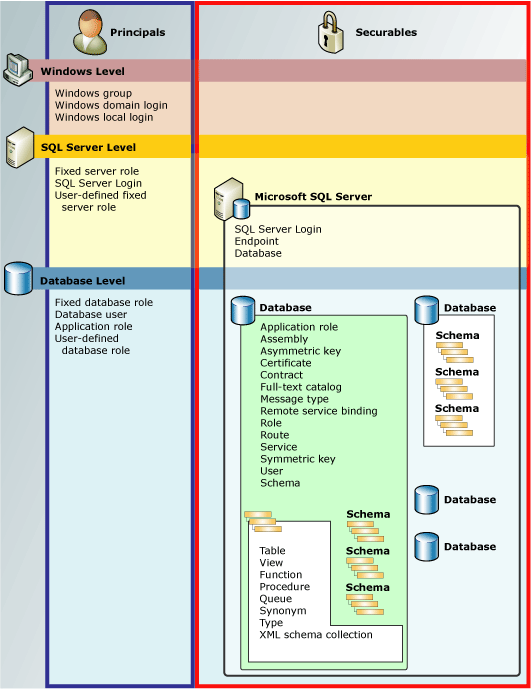

The following illustration shows the relationships among the [!INCLUDEssDE] permissions hierarchies.

Chart of SQL Server Permissions

For a poster sized chart of all [!INCLUDEssDE] permissions in pdf format, see https://go.microsoft.com/fwlink/?LinkId=229142.

Working with Permissions

Permissions can be manipulated with the familiar [!INCLUDEtsql] queries GRANT, DENY, and REVOKE. Information about permissions is visible in the sys.server_permissions and sys.database_permissions catalog views. There is also support for querying permissions information by using built-in functions.

See Also

Securing SQL Server Permissions (Database Engine) Securables Principals (Database Engine) GRANT (Transact-SQL) REVOKE (Transact-SQL) DENY (Transact-SQL) HAS_PERMS_BY_NAME (Transact-SQL) sys.fn_builtin_permissions (Transact-SQL) sys.server_permissions (Transact-SQL) sys.database_permissions (Transact-SQL)
