Quickstart: Use Azure Data Studio to connect and explore Oracle databases

This quickstart shows how to use Azure Data Studio to connect to Oracle database and explore existing database objects.

Note

Currently extension provides a read-only view of the database objects. Running queries is not supported.

Prerequisites

To complete this quickstart, you need Azure Data Studio and access to Oracle database.

Connect to an Oracle database

  1. Start Azure Data Studio.

  2. The first time you run Azure Data Studio the Welcome page should open. If you don't see the Welcome page, select Help > Welcome. Select New Connection to open the Connection pane:

    New Connection Icon

  3. In the connection dialog, select Oracle as Connection type and fill in the following fields:

    • Data source: Enter server name, for example, localhost:1521. Data source can be defined in three different ways: Easy Connect/Easy Connect Plus, TNS Alias or Connect Descriptor. For more information on the format of each method, please refer to the Oracle documentation on Data Source attribute of the ODP.NET connection string.

      [!NOTE] In order to use TNS Alias as a data source, make sure that ORACLE_HOME environment variable is set and TNSNAMES.ORA file is located in the <ORACLE_HOME>/network/admin folder.

    • User Id: User name for the Oracle database

    • Password: Password for the Oracle database

    • Server Group: <Default>

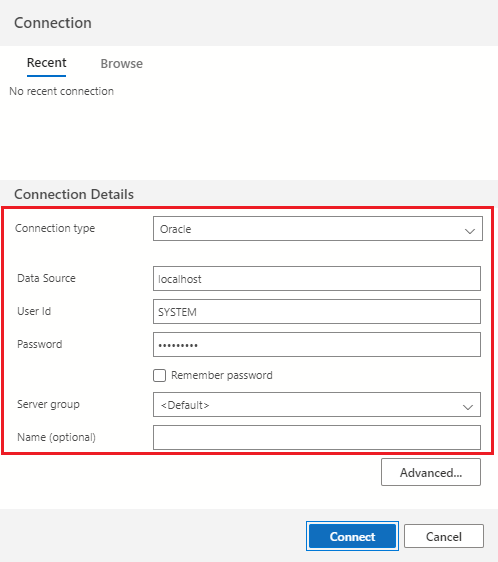

    New Connection Screen

    [!NOTE] Make sure that the Oracle database user used to connect has permissions to enumerate and access objects you are planning to explore. At least CONNECT and SELECT ANY DICTIONARY permissions should be granted to the connecting user.

  4. Click Connect to establish the connection.

Explore database objects

After connection to the Oracle database is established, you will be able to navigate and explore existing database objects using Connections view:

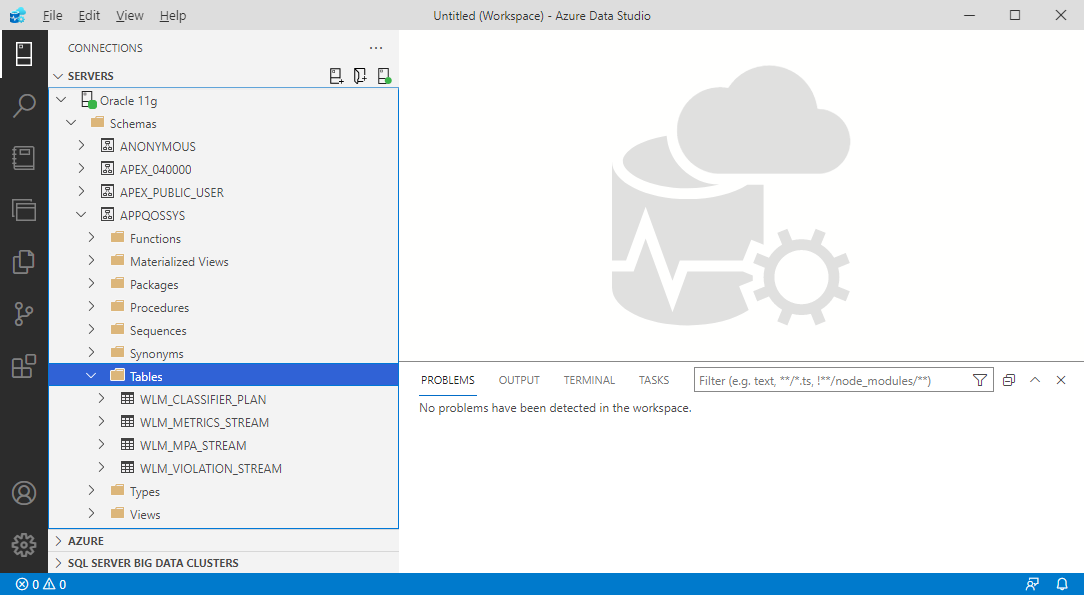

Objects Explorer tree
