Step 3: Explore and visualize the data

[!INCLUDEappliesto-ss-xxxx-xxxx-xxx-md-winonly]

This article is part of a tutorial, In-database Python analytics for SQL developers.

In this step, you explore the sample data and generate some plots. Later, you learn how to serialize graphics objects in Python, and then deserialize those objects and make plots.

Review the data

First, take a minute to browse the data schema, as we've made some changes to make it easier to use the NYC Taxi data

  • The original dataset used separate files for the taxi identifiers and trip records. We've joined the two original datasets on the columns medallion, hack_license, and pickup_datetime.
  • The original dataset spanned many files and was quite large. We've downsampled to get just 1% of the original number of records. The current data table has 1,703,957 rows and 23 columns.

Taxi identifiers

The medallion column represents the taxi’s unique ID number.

The hack_license column contains the taxi driver's license number (anonymized).

Trip and fare records

Each trip record includes the pickup and drop-off location and time, and the trip distance.

Each fare record includes payment information such as the payment type, total amount of payment, and the tip amount.

The last three columns can be used for various machine learning tasks. The tip_amount column contains continuous numeric values and can be used as the label column for regression analysis. The tipped column has only yes/no values and is used for binary classification. The tip_class column has multiple class labels and therefore can be used as the label for multi-class classification tasks.

The values used for the label columns are all based on the tip_amount column, using these business rules:

  • Label column tipped has possible values 0 and 1

    If tip_amount > 0, tipped = 1; otherwise tipped = 0

  • Label column tip_class has possible class values 0-4

    Class 0: tip_amount = $0

    Class 1: tip_amount > $0 and tip_amount <= $5

    Class 2: tip_amount > $5 and tip_amount <= $10

    Class 3: tip_amount > $10 and tip_amount <= $20

    Class 4: tip_amount > $20

Create plots using Python in T-SQL

Developing a data science solution usually includes intensive data exploration and data visualization. Because visualization is such a powerful tool for understanding the distribution of the data and outliers, Python provides many packages for visualizing data. The matplotlib module is one of the more popular libraries for visualization, and includes many functions for creating histograms, scatter plots, box plots, and other data exploration graphs.

In this section, you learn how to work with plots using stored procedures. Rather than open the image on the server, you store the Python object plot as varbinary data, and then write that to a file that can be shared or viewed elsewhere.

Create a plot as varbinary data

The revoscalepy module included with SQL Server 2017 Machine Learning Services supports features similar to those in the RevoScaleR package for R. This example uses the Python equivalent of rxHistogram to plot a histogram based on data from a [!INCLUDEtsql] query.

The stored procedure returns a serialized Python figure object as a stream of varbinary data. You cannot view the binary data directly, but you can use Python code on the client to deserialize and view the figures, and then save the image file on a client computer.

  1. Create the stored procedure SerializePlots, if the PowerShell script did not already do so.

    • The variable @query defines the query text SELECT tipped FROM nyctaxi_sample, which is passed to the Python code block as the argument to the script input variable, @input_data_1.
    • The Python script is fairly simple: matplotlib figure objects are used to make the histogram and scatter plot, and these objects are then serialized using the pickle library.
    • The Python graphics object is serialized to a pandas DataFrame for output.
    CREATE PROCEDURE [dbo].[SerializePlots]
AS
BEGIN
  SET NOCOUNT ON;
  DECLARE @query nvarchar(max) =
  N'SELECT cast(tipped as int) as tipped, tip_amount, fare_amount FROM [dbo].[nyctaxi_sample]'
  EXECUTE sp_execute_external_script
  @language = N'Python',
  @script = N'
import matplotlib
matplotlib.use("Agg")
import matplotlib.pyplot as plt
import pandas as pd
import pickle

fig_handle = plt.figure()
plt.hist(InputDataSet.tipped)
plt.xlabel("Tipped")
plt.ylabel("Counts")
plt.title("Histogram, Tipped")
plot0 = pd.DataFrame(data =[pickle.dumps(fig_handle)], columns =["plot"])
plt.clf()

plt.hist(InputDataSet.tip_amount)
plt.xlabel("Tip amount ($)")
plt.ylabel("Counts")
plt.title("Histogram, Tip amount")
plot1 = pd.DataFrame(data =[pickle.dumps(fig_handle)], columns =["plot"])
plt.clf()

plt.hist(InputDataSet.fare_amount)
plt.xlabel("Fare amount ($)")
plt.ylabel("Counts")
plt.title("Histogram, Fare amount")
plot2 = pd.DataFrame(data =[pickle.dumps(fig_handle)], columns =["plot"])
plt.clf()

plt.scatter( InputDataSet.fare_amount, InputDataSet.tip_amount)
plt.xlabel("Fare Amount ($)")
plt.ylabel("Tip Amount ($)")
plt.title("Tip amount by Fare amount")
plot3 = pd.DataFrame(data =[pickle.dumps(fig_handle)], columns =["plot"])
plt.clf()

OutputDataSet = plot0.append(plot1, ignore_index=True).append(plot2, ignore_index=True).append(plot3, ignore_index=True)
',
@input_data_1 = @query
WITH RESULT SETS ((plot varbinary(max)))
END
GO

  2. Now run the stored procedure with no arguments to generate a plot from the data hard-coded as the input query.

    EXEC [dbo].[SerializePlots]

  3. The results should be something like this:

    plot
0xFFD8FFE000104A4649...
0xFFD8FFE000104A4649...
0xFFD8FFE000104A4649...
0xFFD8FFE000104A4649...

  4. From a Python client, you can now connect to the SQL Server instance that generated the binary plot objects, and view the plots.

    To do this, run the following Python code, replacing the server name, database name, and credentials as appropriate. Make sure the Python version is the same on the client and the server. Also make sure that the Python libraries on your client (such as matplotlib) are the same or higher version relative to the libraries installed on the server.

    Using SQL Server authentication:

    import pyodbc
import pickle
import os
cnxn = pyodbc.connect('DRIVER={SQL Server};SERVER={SERVER_NAME};DATABASE={DB_NAME};UID={USER_NAME};PWD={PASSWORD}')
cursor = cnxn.cursor()
cursor.execute("EXECUTE [dbo].[SerializePlots]")
tables = cursor.fetchall()
for i in range(0, len(tables)):
    fig = pickle.loads(tables[i][0])
    fig.savefig(str(i)+'.png')
print("The plots are saved in directory: ",os.getcwd())

    Using Windows authentication:

    import pyodbc
import pickle
import os
cnxn = pyodbc.connect('DRIVER={SQL Server};SERVER={SERVER_NAME};DATABASE={DB_NAME};Trusted_Connection=yes;')
cursor = cnxn.cursor()
cursor.execute("EXECUTE [dbo].[SerializePlots]")
tables = cursor.fetchall()
for i in range(0, len(tables)):
    fig = pickle.loads(tables[i][0])
    fig.savefig(str(i)+'.png')
print("The plots are saved in directory: ",os.getcwd())

  5. If the connection is successful, you should see a message like the following:

    The plots are saved in directory: xxxx

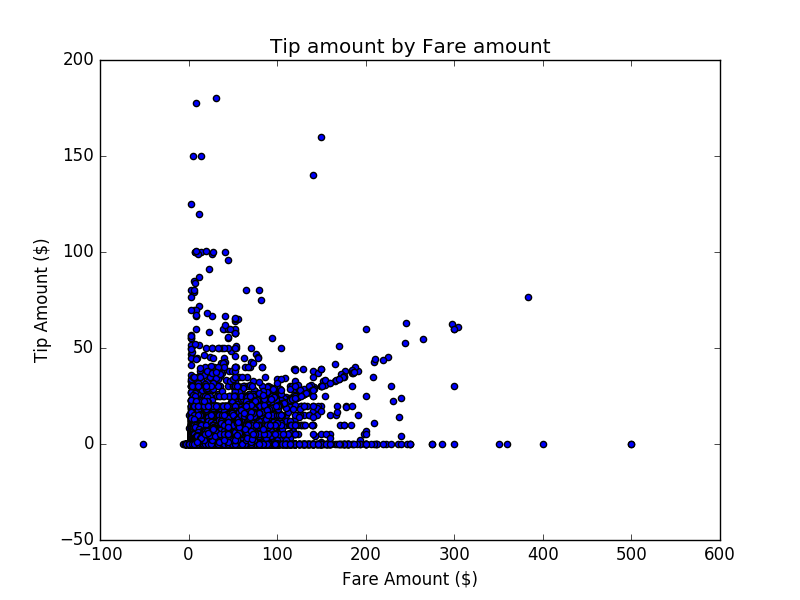

  6. The output file is created in the Python working directory. To view the plot, locate the Python working directory, and open the file. The following image shows a plot saved on the client computer.

    Tip amount vs Fare amount
